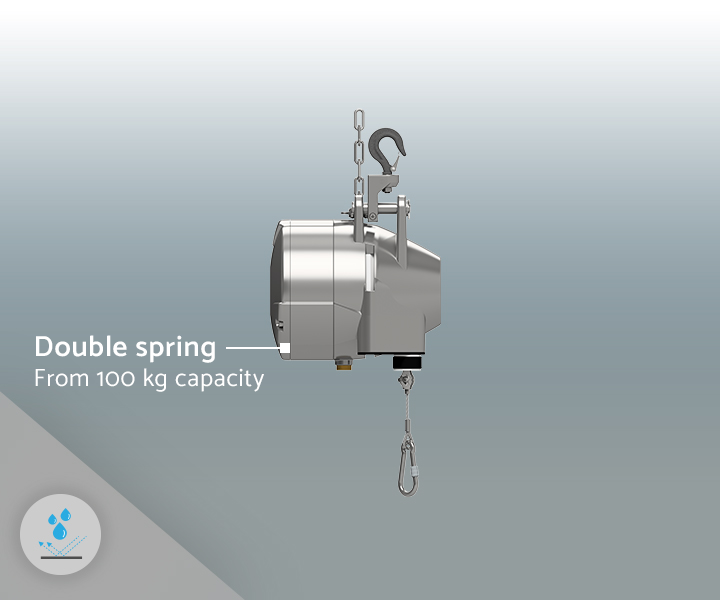

Rust-free Balancer
TYPE 8251
Load range: 15.0 - 200.0 kg | Cable travel: 3000 mm
- Cable travel: A longer cable is available upon request
- Highly corrosion-resistant materials
- AquaGuard (Drain hole against waterlogging)
- Food grade grease (NSF H1-compliant)
- Freely rotating and swivelling safety hook for suspension, adjustable
- Housing and housing cover of high-strength chill-cast aluminum
- Cable drum of high-strength chill-cast aluminum
- Closed ball bearings on both sides
- High-strength, encapsulated special suspension spring
- Flexible stainless steel cable
- Adjustable cable stop buffer
- Screw-type spring hook for load suspension
- Patented freewheel protects against overrotation when the spring is released
- Infinitely variable load setting via endless screw
- Closed unit
- Rigid, impact-resistant design
- Suspension via safety hook (freely rotating and swivelling design)
- Includes safety expansion chain as fall protection
- Integrated mechanism for locking the cable drum
- High-strength, encapsulated special suspension spring
- Patented freewheel protects against overrotation when the spring is released
- Spring fracture safeguard is standard
- Cable overload protection via cable extension limit stop
- Includes ferrule for securing the cable end
- Screw-type spring hook for load suspension
| Item |
GTIN |
Load rangein kg |
Cable travelin mm |
Own weightin kg |
InquiryPrices/Details |
| 8251010001 |
4262466532341 |
15,0 - 25,0 |
3000 |
25,0 |
|
8251010002 |
4262466532358 |
25,0 - 35,0 |
3000 |
26,0 |
|
| 8251010003 |
4262466532365 |
35,0 - 50,0 |
3000 |
27,0 |
|
| 8251010004 |
4262466532372 |
50,0 - 65,0 |
3000 |
28,0 |
|
| 8251010005 |
4262466532389 |
65,0 - 80,0 |
3000 |
29,0 |
|
| 8251010006 |
4262466532396 |
80,0 - 90,0 |
3000 |
30,0 |
|
| 8251010007 |
4262466532402 |
90,0 - 100,0 |
3000 |
32,0 |
|
| 8251010008 |
4262466532419 |
100,0 - 115,0 |
3000 |
41,8 |
|
8251010009 |
4262466532426 |
115,0 - 130,0 |
3000 |
43,2 |
|
| 8251010010 |
4262466532433 |
130,0 - 140,0 |
3000 |
44,6 |
|
| 8251010011 |
4262466532440 |
140,0 - 150,0 |
3000 |
46,0 |
|
| 8251010012 |
4262466532457 |
150,0 - 170,0 |
3000 |
46,4 |
|
| 8251010013 |
4262466532464 |
170,0 - 180,0 |
3000 |
46,7 |
|
| 8251010014 |
4262466532471 |
180,0 - 190,0 |
3000 |
47,0 |
|
| 8251010015 |
4262466532488 |
190,0 - 200,0 |
3000 |
47,3 |
|
